Sustainability in Action: Repair Instead of Replacement

13.04.2025 by Viktor Siebert

Sustainability in Action: Repair Instead of Replacement – A Success Story

Challenges Due to Supply Shortages

A few years ago, a machine manufacturer approached us regarding the repair of a Yaskawa HV-75AP4 Magnetic Contactor for Winding Selection. The customer faced a difficult situation: the original manufacturer had ceased supplying new devices, threatening to halt the functionality of machines successfully sold over decades. Without this crucial component, entire production lines risked standstill. Developing a new replacement posed significant risks and high costs.

Innovative Solutions Instead of Downtime

Our engineers thoroughly inspected the defective component. It quickly became clear that component-level repair was impossible, as spare parts were no longer available. Our engineer, Mr. H. Ulrich, chose an innovative approach: instead of repairing the original component directly, he developed a new circuit board equipped with modern, sustainably available components. This ensured the ongoing capability to service and repair these devices for many years ahead.

Sustainability and Customer Satisfaction

This creative solution greatly satisfied our customer. It led to numerous subsequent orders from other machine manufacturers using similar contactors in their equipment. Thus, a challenging situation turned into a success story exemplifying sustainable business practices.

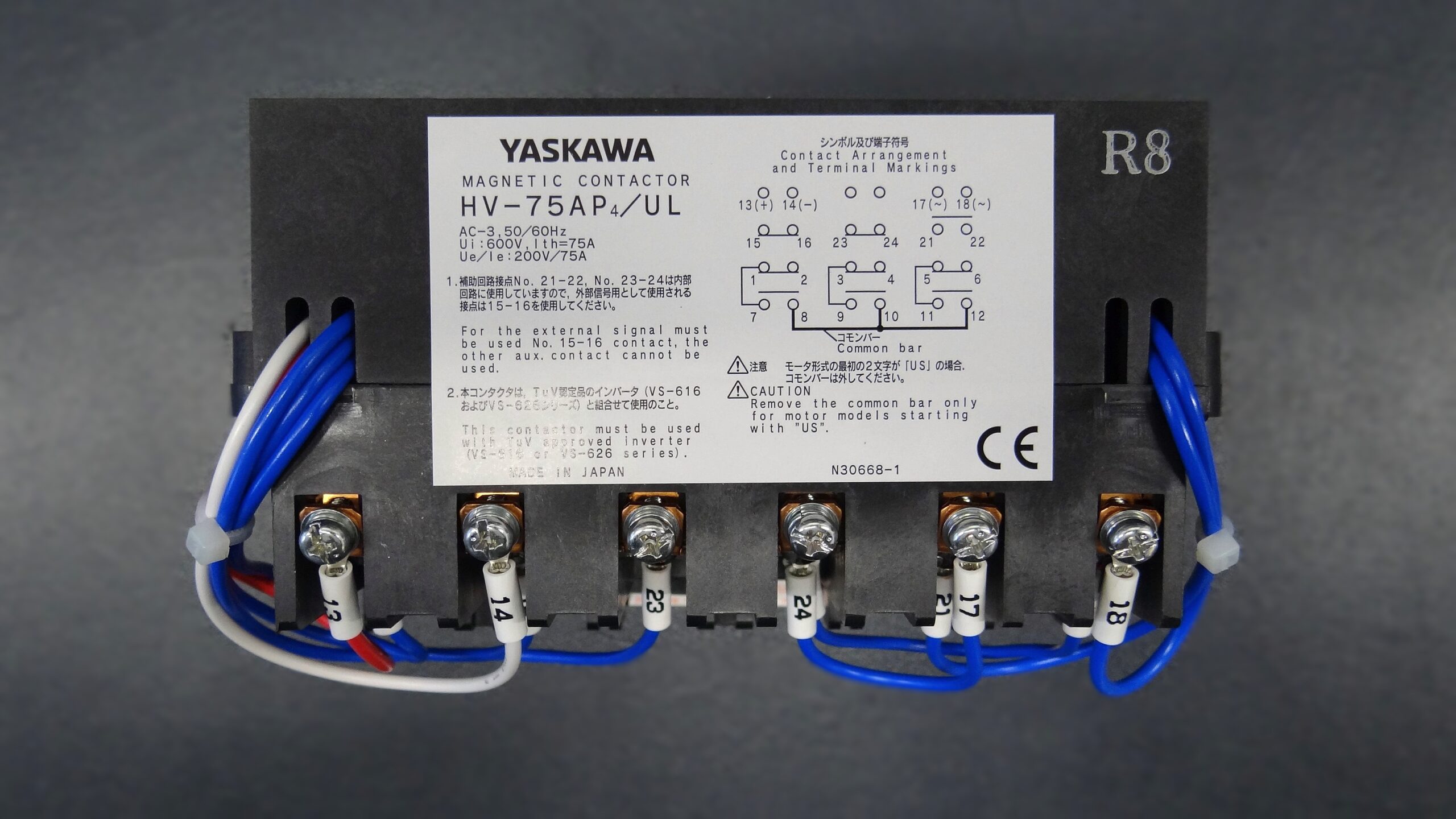

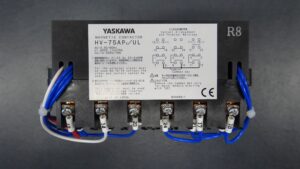

How Does the Yaskawa HV-75AP4 Work?

The Yaskawa HV-75AP4 is a magnetic contactor designed specifically for motor winding switching. It enables the switching between different winding configurations typically required in spindle drives and machine tools.

Technical Specifications at a Glance:

Rated Current: 75 A continuous current
Rated Voltage: up to 600 V AC
Switching Capacity: Max. 200 A at 220 V AC, 150 A at 440 V AC
Connection Type: Robust and secure screw connections
Application Areas: Industrial systems, machine tools, drive technology
Dimensions: approx. 115 mm (height) × 160 mm (width) × 93 mm (depth)
Weight: approx. 2.5 kg

Growing Importance of Repairs

Especially in times of global uncertainties and supply chain disruptions, the repair of existing equipment is becoming increasingly important. Our philosophy is clear, fair, and honest: We are committed to providing sustainable, long-term solutions to keep your business running smoothly.
