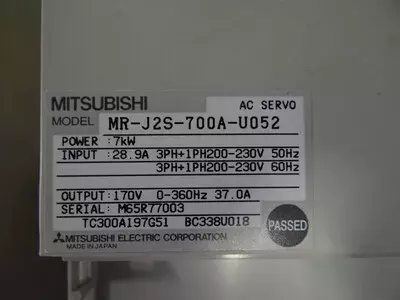

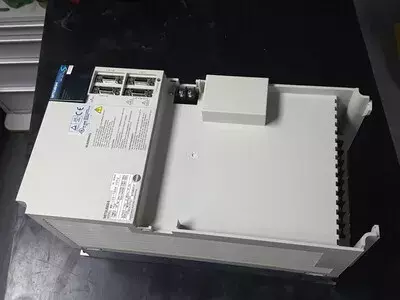

Repair service for Mitsubishi MR-J2S-700A-U052
AC Servo Drive
ID: 40255
| Buy | Not available |
| Repair | € 1,500.00 |
| Exchange | Not available |
Repair of Mitsubishi Drive Electronics
Mitsubishi Drive Electronics
Additionally, we also offer services for Mitsubishi motors.
We specialize in the following series:
- MR-J2S-xxA series, e.g., MR-J2S-70A
- MR-J2S-xxB series, e.g., MR-J2S-70B
- MR-J2S-xxCL series, e.g., MR-J2S-40CL
- MR-J2S-xxCP series, e.g., MR-J2S-40CP
- MR-J2S-xxD series, e.g., MR-J2S-200D-S016T005
Our repair process is preventive and includes a series of steps that ensure high repair quality.
Fault Analysis and Localization
What Can You Do?
Servo Module Errors
Possible Solutions and Tips
- Replace the motor as a test.
- Check cable connections.
- Run in jog mode without load.
If these measures do not help, the fault is usually in the power stage of the drive module.
Further error messages can be found in the alarm list available for download at the end of this page.
Possible Solutions and Tips
- Warm the device with an external source. If it turns on, this indicates a weak power supply that needs repair.
- Check fuses.
- Check the voltage supply of 3 x 200 or 220 volts, depending on the model.
Further error messages can be found in the alarm list available for download at the end of this page.
Handling Parameters
What should be considered when parameterizing?
- In most cases, the parameters are stored in the drive or controller.
- Obtain the necessary documentation or software for parameter settings.
Further documentation on this topic can be found at the end of this page or feel free to contact us directly.
The Typical Repair Process for Mitsubishi Drive Modules
The repair process for drive modules includes the following steps
- Preventive overhaul - replacement of all necessary defective and worn parts.
- Intensive cleaning.
- Comprehensive final and load tests on our test stands.
- Parameter matching or restoration.
- Filling out documentation and checklists.
High-Quality Spare Parts for High-Quality Repairs
For Mitsubishi drive modules, we replace
- Electrolytic capacitors
- Large buffer capacitors
- Relays
- Current measuring modules
- Optocouplers
Additionally, we replace certain parts that have proven to be frequently failing over multiple repairs and are therefore statistically selected for replacement.
To counteract shortages and discontinuations, we have processoriented software solutions that monitor our inventory. We order some parts in advance, and for series repairs, we even secure sufficient spare parts for a year to always have a large stock available.
Quality and Level of Repair
The test is conducted at a test stand that simulates the processes like in a real machining plant.
During the test, the following are checked:
- BUS control
- POT/NOT
- Encoder connection
- Alarm conditions
- Speed
- Current and voltage consumption
- Temperature
- Parameters
We Continuously Expand Our Repair Portfolio with New Series
As drive and power electronics are often prematurely discontinued, you may find yourself under pressure to deliver replacements to your customers in a timely manner. We support you in analyzing bottlenecks and work together on optimal solutions.
The typical process includes:
- Development of test stands and procedures
- Organization of spare parts
- Preventive repair at the component level
- New development or re-engineering of modules or complete devices if necessary
Frequently Asked Questions
Drive module repair
- Preventive overhaul - replacement of all necessary defective and used parts. E.g. electrolytic capacitors, transistors, optoelectronic components.
- Intensive cleaning
- Extensive final and load tests on our test stands
- Parameter adjustment or parameter recovery
Further information
- Mitsubishi Servopack MR-J2S Series:
MR-J2S-10A, MR-J2S-20A, MR-J2S-40A,MR-J2S-60A, MR-J2S-70A, MR-J2S-100A, MR-J2S-200A, MR-J2S-350A, etc.
Cost & Warranty
Alert-list-B.pdf (4.80 MB)You can contact us in the following way:
Chat with our customer support, write us a message: info@industrypart.com or call us: +49 6251 9888430
